We are specialized suppliers of panel systems for these categories

Of noisy industrial machinery, transportation systems, factories, power plants, and public buildings

Of factories, power plants, hospitals, laboratories, stadiums, conference centers, universities, banks, shopping centers, and hotels

In hospitals, laboratories, industrial bakeries as well as for electronic, and medical production

In factories, production facilities etc.

We can help you with most challenges after having worked with our

0 +
Satisfied Customers

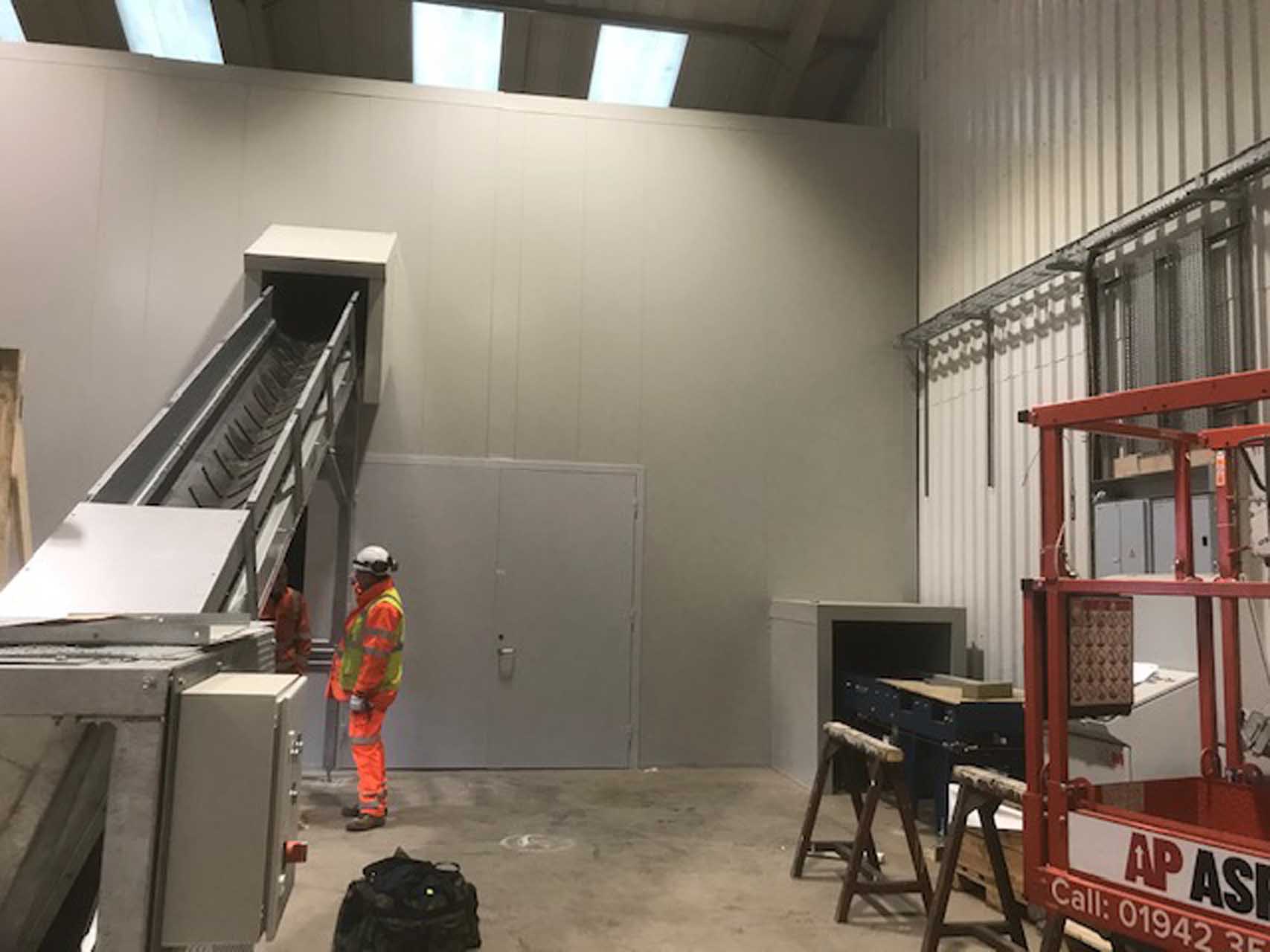

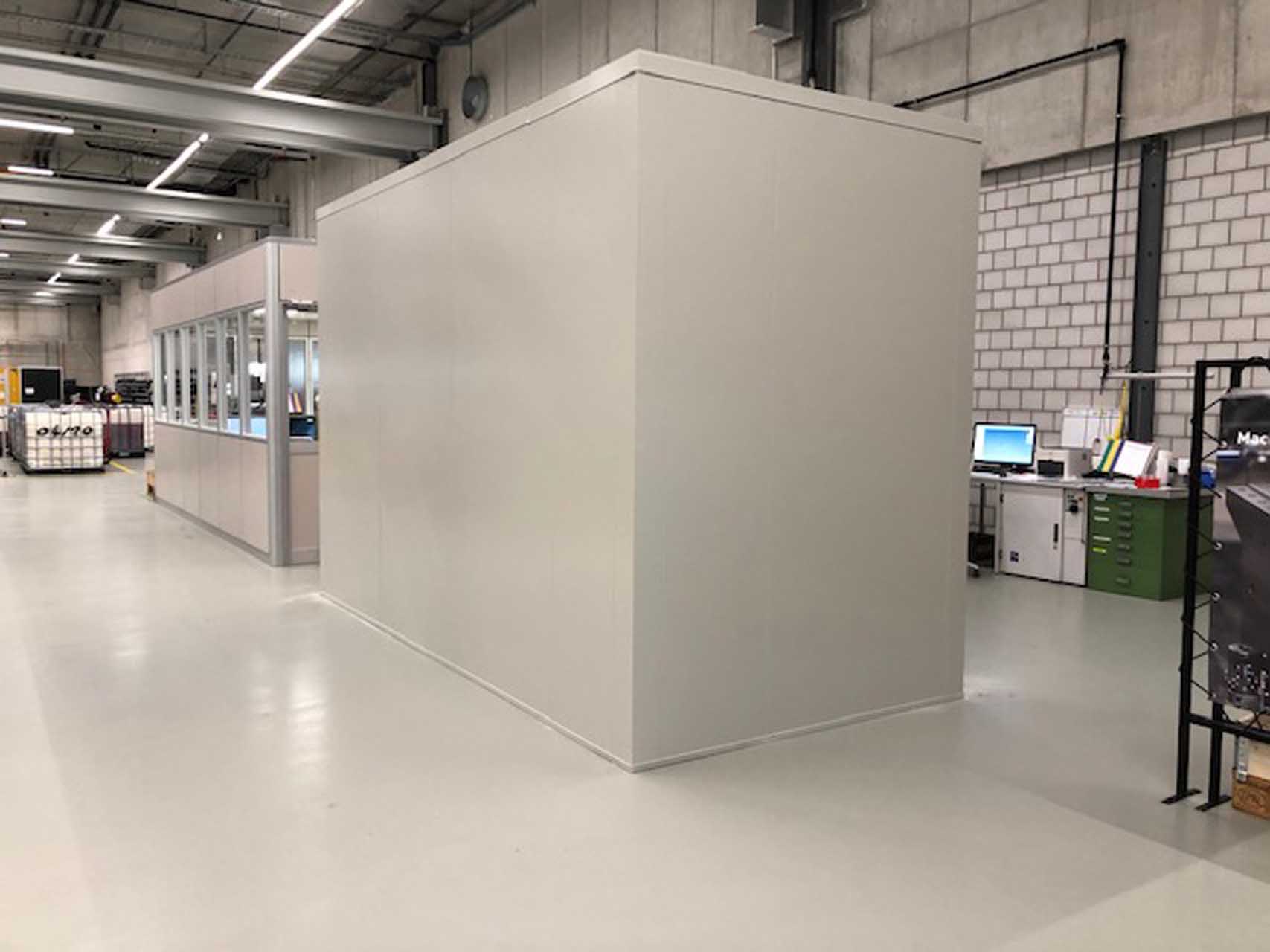

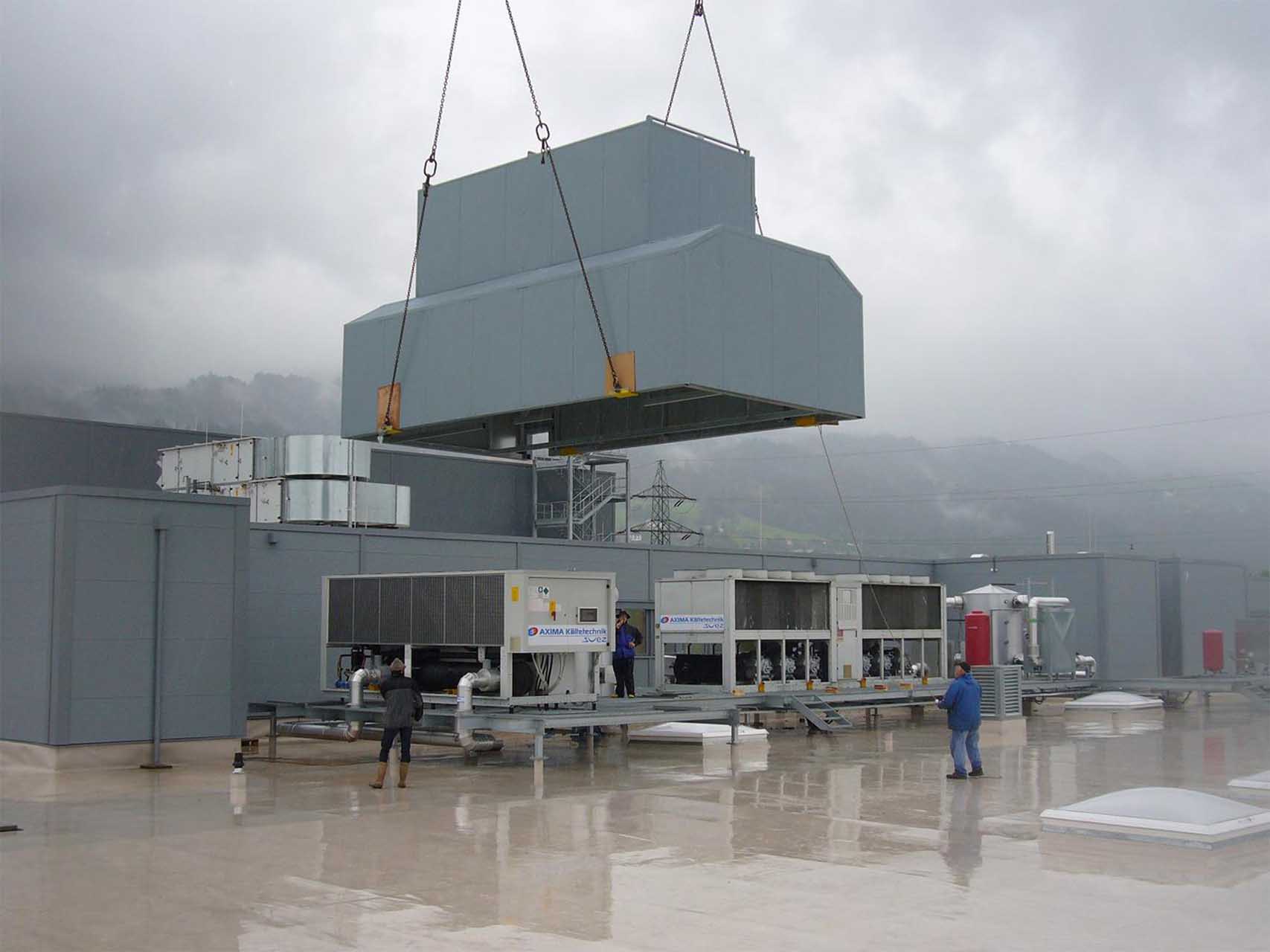

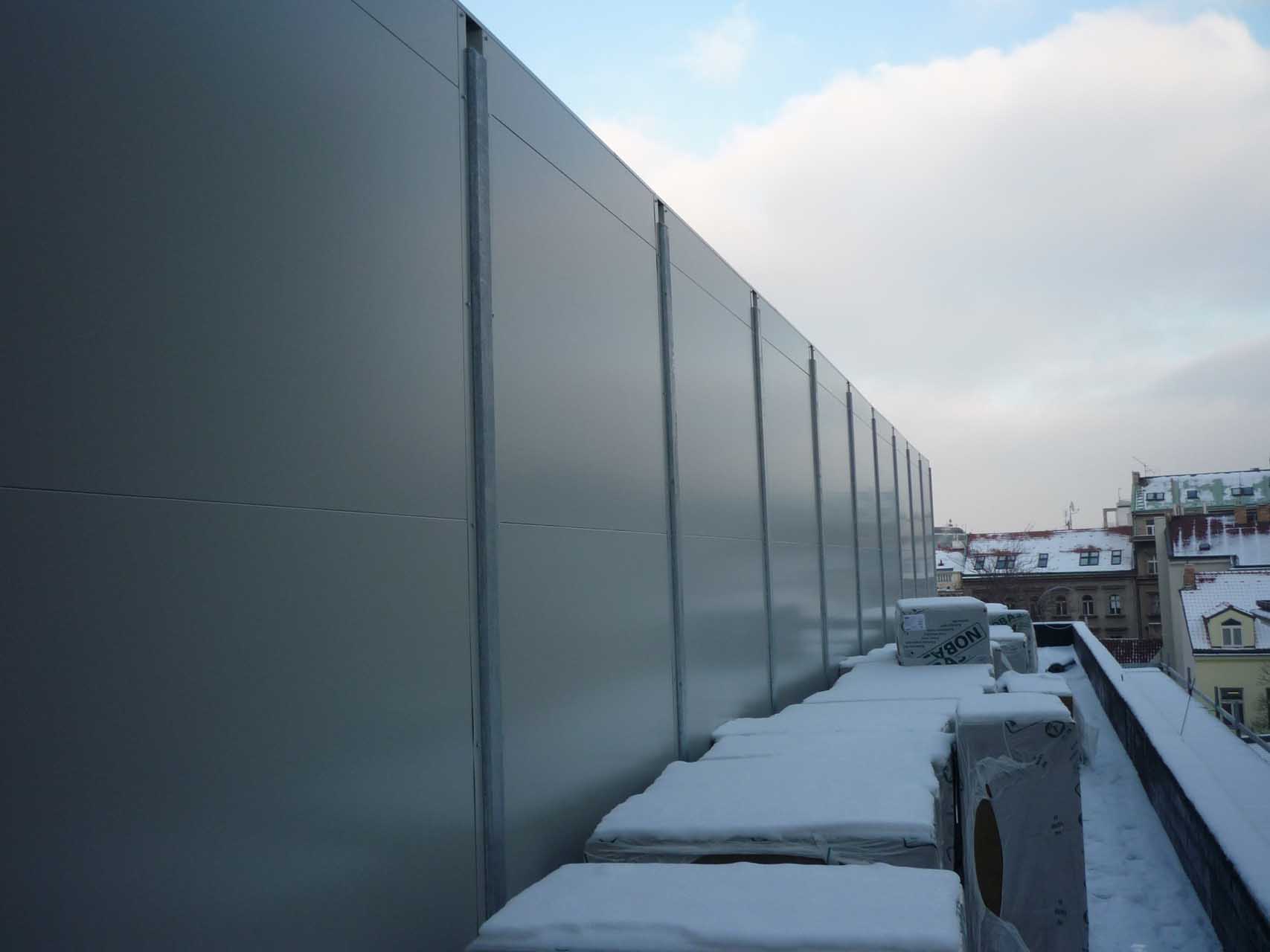

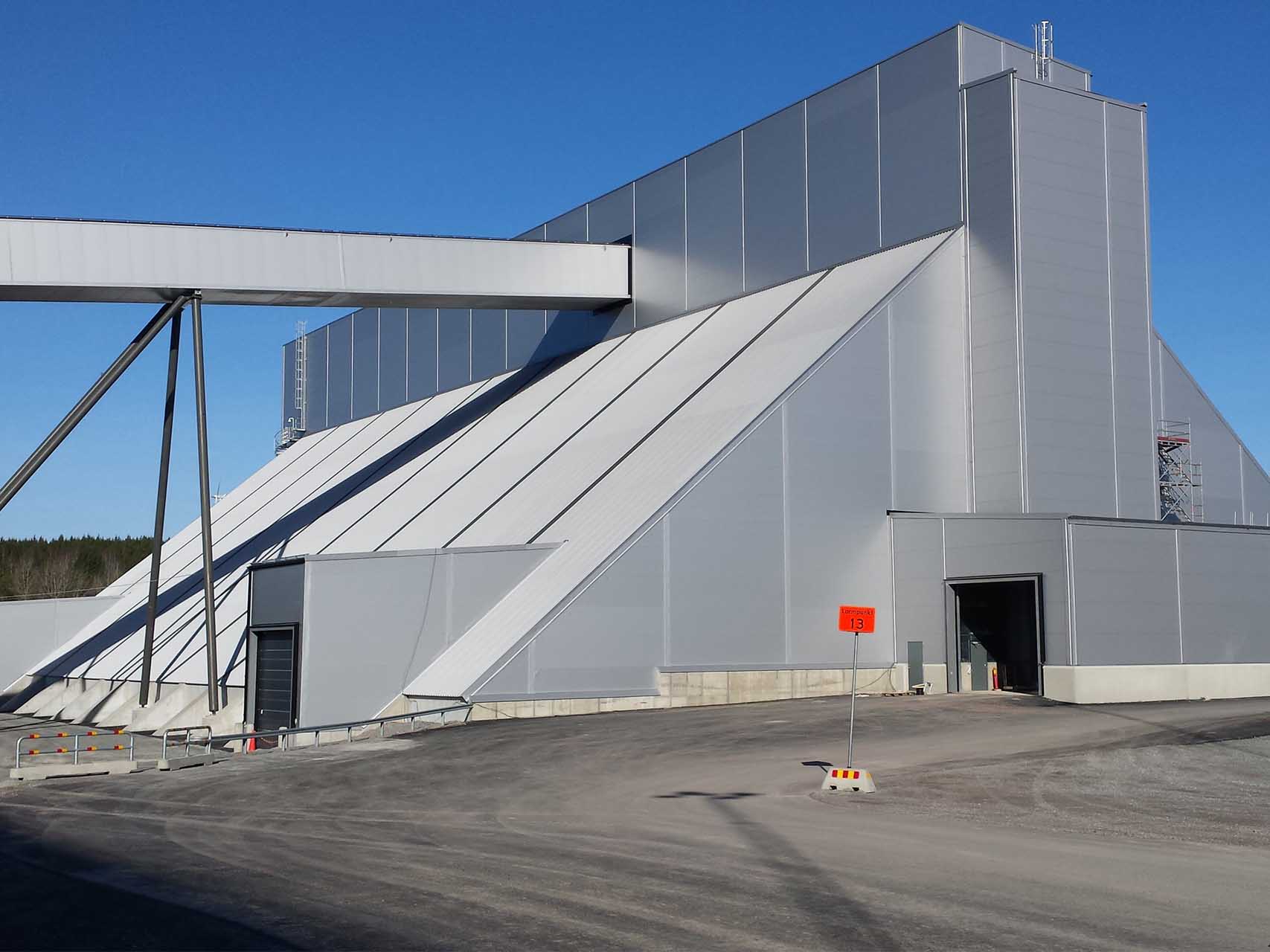

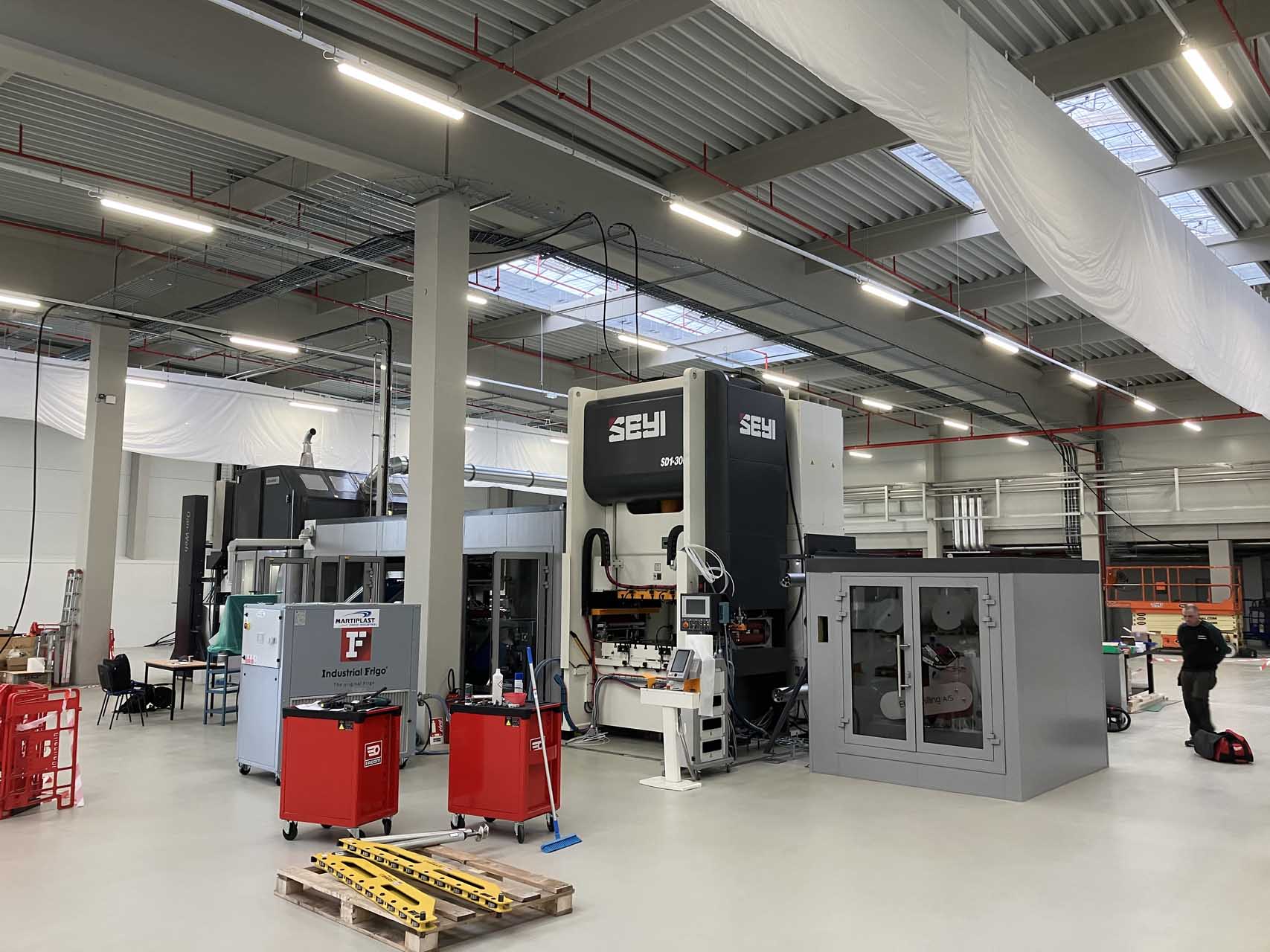

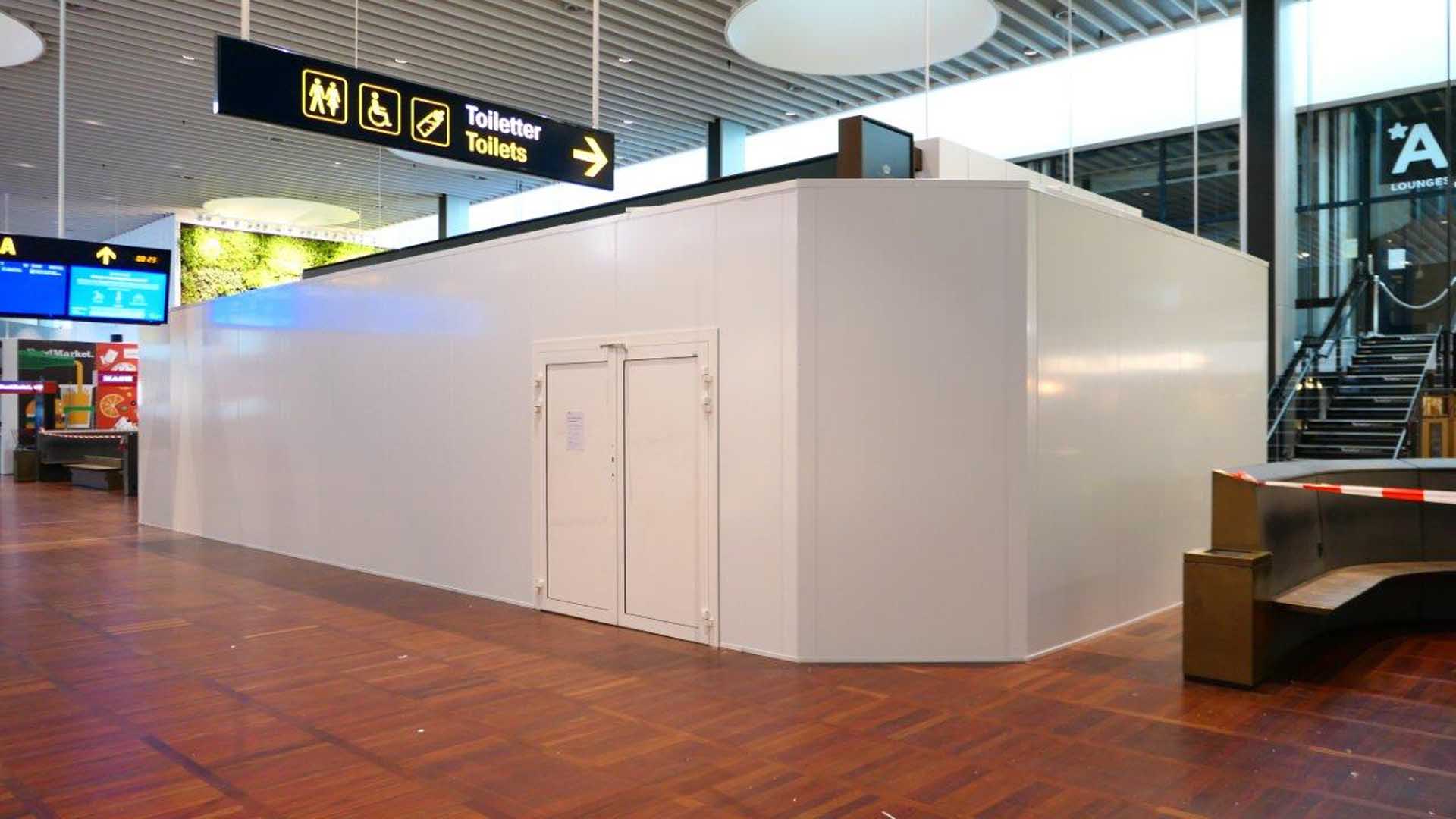

As the panel systems are extremely flexible we have created reliable projects across the globe

Contact us at:

  • + 45 52 30 30 88
  • fb@aaboakustik.com

Contact us to start a collaborative process towards your optimal ventilation

Make preparations

Design solution

Agreement

Installation

Every solution requires the right preparations. Preparations can be done by you, or we can collaborate to make sure everything is taken care of. These preparations may consist of:

  • Measuring noise levels
  • Measuring area dimensions
  • Calculating price
  • Considering important questions

Our offers always include a 3D drawing and list of units, and we work closely with you to ensure that you get the optimal solution.​

Once we reach an agreement for a solution, you will receive an order confirmation from us.

  • Materials are shipped and typically arrive in 3-5 weeks.
  • You prepare the project area for installation.

The panels are easily installed; you can choose to do it yourself with our guidance, or we can have our experts install them for you.

Technical specifications

We develop solutions in close collaboration with our customers and suppliers and adapt designs to the users’ specific requirements. Our ventilation systems room system is a comprehensive incorporated system with walls, ceilings, doors and the necessary assembly profiles for a fan room and its ventilation channels. The system is based on a sandwich panel with a core of bonded transverse heavy mineral wool, a surface layer of smooth galvanized steel sheet and sealed joint system, which make the whole system airtight and very flexible to assembly features.

About the panels

The panels consist of a core of non-flammable cross-layered mineral wool in varying densities with good thermal properties and high resistance to fire. The wall system is manufactured with high-density, cross-layered mineral wool that is glued in staves, producing an extremely strong sandwich construction that makes the installation self-supporting and avoids the need for costly joist systems. A panel system can be self-supporting at a free span of up to 6000 mm in length with a central point load of 150 kg, which completely avoids the need for a steel construction. In addition to saving steel construction, it also provides faster assembly and reduces the chance for installation errors. The profile design of the panel edges provides one of the most useful and flexible joint systems available on the market. Exterior surfaces are aluminum, stainless steel, magnesium or galvanized steel. Choose from a wide variety of decorative finishes including a transparent lacquered galvanized finish, painted finishes, or a PVC-clad decorative finish in a variety of colors.

Noise reduction

All panel variants are tested in a sound lab and are provided with diagrams that show the exact results. The system is tested and approved for sound reductions up to 49 dB and can, if needed, be equipped with perforated steel sheets for even better sound absorption. Depending on the choice of thickness and configuration, sound reduction for the panels ranges from 28 to 52 dB Rw. When it comes to acoustical properties, the wall system fulfills the market’s most stringent demands for sound reduction and sound absorption. When maximum sound absorption is needed, we supply panels with perforated surfaces with a membrane glued between the sheet metal and the cross-layered insulation. This solution prevents the escape of particles from the core material.

Ease of installation minimizing downtime

Our ventilation solutions are very easy to install. You can choose to do it yourself, or we can send a supervisor or a team to help with the installation. By utilizing an effective 'LEGO' style, the installation process usually takes only one-third of the time of traditional methods. Usually, most of the system can be assembled around the machine before installation, minimizing the expense of having the machine turned off. Components can be easily cut and drilled onsite, providing the opportunity to easily adapt to existing construction dimensions and make last-minute changes.

Thermal insulation

Due to the sandwich design with no thermal bridges the ventilation system minimizes condensation and water damages. The panels are tailored in thicknesses appropriate for your environment and requirements. The wall system fulfills fire safety demands up to EI60. The polyester-painted surface finish is entirely free from halogen and PVC-clad surfaces comply with surface finish Class 1 in accordance with Swedish National Board of Housing, Building, and Planning guidelines. Alternatively, we can replace the mineral wool core with EPS insulation if there are no demands for fire insulation or sound insulation.

Logistics and lead time

We custom package and ship to any location across the globe. Our highly efficient shipping department has many years of experience with both land and sea transports and takes care of all of the necessary documents and transfers. We have a lead-time of 4-7 weeks on a global scale. For small, urgent European projects, we have standard panels warehoused throughout the continent, allowing for a very short lead-time. The wall system is normally delivered with custom height and width modules as specified by the tailor made design. Deliveries are often in the form of a complete system, including our own modular doors, and all deliveries can be kit-packaged into systems according to customer preferences.

Key factors about choosing the right supplier and solution

We are confident that we offer the very best solutions within our field, and if we do not believe we are your optimal choice, we will direct you to someone who is. To guide you through the process, we have prepared some central questions we recommend you have in mind when choosing a supplier and solution.

What is the total cost?

  • What is the cost of materials?
  • What is the cost of installation if I do it myself, if I hire local team with one of Aabo Akustik´s supervisor to guide the process, or if I get a team to intall the system?
  • What is the cost of downtime (e.g., the production line has to be stopped during installation)?
  • Will there be an additional cost if last minute changes need to be made?
  • How sensitive are we in regards to delays?

Can I get what I want?

  • Can the solution comply with potential surface requirements such as food hygiene, static electricity, rust, etc.?
  • Can the solution be watertight and/or airtight?
  • How do we comply with the requirements for electricity; fire safety, health, and work environment regulations; and building requirements for roofs, walls, etc.?

How will the current system react to the installation?

  • How much noise reduction is necessary, and are certain areas more critical?
  • What noise frequencies should be reduced and by how much?
  • Can the panels withstand the wind? If so, how do we support them?

Where should openings, doors, and windows be placed?

  • What parts of the system should be accessible?
  • Which parts should be accessible during reparations and maintenance?
  • Will parts of the sound reducing enclosure need to be dismountable?

What if we need to make changes to the noise reducing enclosure?

  • How do we easily disassemble and reassemble the noise cancelling solution?
  • How can we easily add or remove parts of the enclosure?

Do I trust the supplier?

  • Does the supplier have an excellent reputation and good track record providing similar projects for top brands?
  • Does the supplier have the will and the capability to provide exactly what I need to solve my specific issue?
